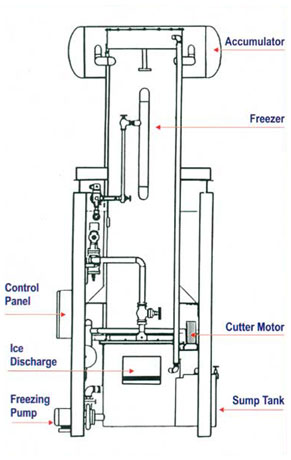

The Unique design of our Tube Ice Machine Freezes Ice automatically in the Vertical Stainless Steel tubes by the Refrigerant circulating around tubes in freezer shell.
The Swril of water falls from the top of each tube, the hole is formed during the formation of Ice because of the falling film of water, freezing takes place inside the vertical tubes, as the water freezes the impurities are washed back to the sump tank to be released as and when required, when the Ice in the tubes is frozen to the desired thickness.
Hot gas is released automatically in to the freezer Shell releasing tubes of lce on to a cutter, the cutter cuts ice pieces of desired preset length.
The cylindrical Ice is available in three standard diameters 1 3/8", 1 1 / 8" & 7 / 8", Standard length is approximately 1" or can be designed to
customers requirement.
Our staff strives to ensure that the Tube Ice Machines are among the strongest,
withstand years of rigorous use. We are constantly working to improve
efficiency, ruggedness, reliability of our tube Ice machines to keep us ahead of
competition.
Our Tube Ice Machines are designed to satisfy the varying needs of different
industries and customers. Our Tube Ice machine capacity varies from 1300 kg
to 40,000 kgs. of Tube Ice per day, our self contained models are 1300 kg. to
5000 kg. of Tube Ice per day and are operational on Ammonia & R-22
refrigerant.
We supply a perfect Ice machine no matter what's your need, if any of our many
models does not suite your need we will gladly work with you to custom design a
model that fulfill your requirements.
ADVANTAGES OF TUBE ICE PLANT OVER FLAKE ICE & BLOCK ICE PLANT
TUBE ICE
» Highly efficient consumes less power.
» Lesser space required
for production.
» Ice Produced in batches of 20-25 minutes.
» Minimum Maintenance and does not
require any replacement parts for a long
period.
» Investment lower than
Block Ice Plant.
» Easy delivery through
screw conveyers.
» Can be sold in any
packed quantity for
any use.
FLAKE ICE
» Very high power
consumption per ton of
Flake Ice produced.
» Space required is also
more compared to tube
Ice Machine.
» It produces Flake Ice
continuously and after
few hours lumps of Ice
are formed and becomes
difficult
for transportation.
» Wear and tear is very
high compared to Tube
Ice machine because of
constant movement of
scrapper.
» Investment is also
higher and it also does
not fulfill the rated
production capacity.
» Requires manual
handling as lumps are
formed.
» Cannot be sold In
packed condition.
BLOCK ICE
» High power consumption when not
working in full
capacity.
» Very large area
required for brine tank
» First Ice Block is
produced in 2-3 days
time.
» It requires frequent
replacement of Ice
cans, Brine Solution,
Spares for Hoist,
Agitator etc.
» Very high investment
in building, land &
plant equipments.
» Ice blocks being very
heavy requires manual
harvesting & Handling.
