We manufacturer two different models of Brine Agitator.

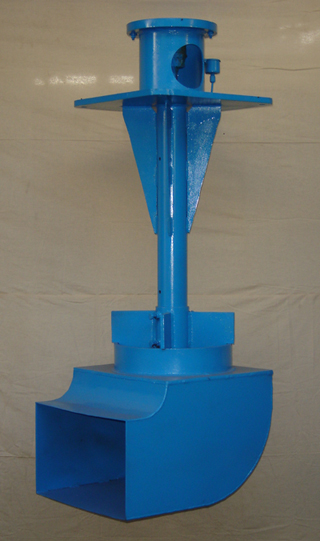

Mono Block / Coupled Brine Agitator
Made up of heavy duty M.S. Pipe in which a 1½” (38 mm.) shaft is fitted with gunmetal bush at both ends or taper rolling / ball bearing as required by the customer. These agitators are fitted with 14” Dia. C.I. Impeller/ Fan and the capacity of the agitator can be varied by changing the degree of Impeller/ Fan blades.

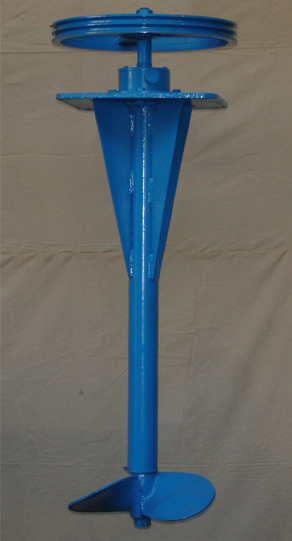

V Belt Driven Brine Agitator
Made up of heavy duty M.S. Pipe in which a 2" (50 mm.) Shaft is fitted. The shafts has gunmetal bush at the fan end and taper roller bearing at the pulley end and are fitted with various sizes of C.I. fan / impeller. i.e. 8”, 12”, 16”, 18” & 20” according to capacity of the ice plant.
These agitators come in different models suitable for various depths of tank or as per customer requirement.
